Water containment and environmental protection are critical challenges in modern construction, agriculture, and industrial projects. Whether you are building a fish farm in Lahore or managing a landfill in Karachi, the integrity of your lining system determines the success of your project. This is where HDPE geomembrane comes into play.
As the gold standard for impermeable barrier membranes, high-density polyethylene (HDPE) liners offer unmatched durability and chemical resistance. But what makes them the preferred choice over other materials? How do you select the right geomembrane sheet thickness, and what does the installation process involve?
This comprehensive guide dives deep into the world of geomembrane liners. We will explore their properties, varied applications, technical specifications, and the growing market for HDPE geomembrane in Pakistan.
HDPE geomembrane is a low-permeability synthetic membrane liner or barrier used with any geotechnical engineering related material so as to control fluid (or gas) migration in a human-made project, structure, or system. It is made from high-grade polyethylene raw material, mixed with carbon black, antioxidants, and anti-aging agents.
This composition creates a high-density plastic liner that is robust, flexible, and resistant to UV radiation and harsh chemicals. Unlike traditional waterproofing methods like concrete or compacted clay, a geomembrane liner provides a consistent, reliable barrier that doesn't crack easily under environmental stress.
Impermeability: Acts as a superior waterproof liner, preventing seepage effectively.
Chemical Resistance: Highly resistant to acids, alkalis, oils, and hazardous waste.
UV Stability: The addition of carbon black allows it to withstand long-term exposure to sunlight.
Durability: An HDPE geomembrane typically has a long service life, often exceeding 50 years in buried applications.
When comparing options like PVC, EPDM, or LLDPE, HDPE stands out for several reasons. While a flexible geomembrane sheet made of LLDPE might offer better pliability, it lacks the chemical toughness of HDPE.
HDPE geomembrane durability is one of its biggest selling points. It has high tensile strength and tear resistance, making it suitable for rugged environments. Whether it is used as a geomembrane reservoir liner or in mining, it withstands physical damage better than most alternatives.
For large-scale projects, the cost of HDPE geomembrane is generally lower per square meter compared to other geosynthetics. When you factor in the longevity and low maintenance requirements, the lifecycle cost becomes incredibly attractive for budget-conscious projects.
As an environmental lining material, HDPE is non-toxic and safe for use in potable water storage and aquaculture. This makes it the ideal HDPE pond liner for fish and shrimp farming, ensuring no harmful chemicals leach into the water.
Before purchasing, it is crucial to understand the HDPE geomembrane specification. Suppliers often provide a geomembrane datasheet that lists test results based on international standards like ASTM GRI GM-13.
HDPE geomembrane thickness varies depending on the application. Common options include:
0.5 mm - 0.75 mm: Often used for aquaculture pond liners or temporary covers.
1.0 mm - 1.5 mm: The standard for most water containment projects, including canals and reservoirs.
2.0 mm - 2.5mm (80 - 100 mil): Used for geomembrane landfill liners and hazardous waste containment where maximum puncture resistance is required.
Smooth Geomembrane: Provides a flat surface, ideal for applications where friction is not a major concern.
Textured Geomembrane: Features a rough surface to increase friction. This is essential for lining steep slopes to prevent soil slippage on top of the liner.
When reviewing an HDPE geomembrane datasheet, pay attention to:
Density: Should be ≥ 0.940 g/cc.
Tensile Properties: Look for yield strength and break strength.
Tear Resistance: Critical for installation handling.
Carbon Black Content: Usually between 2% and 3% to ensure UV protection.
The versatility of this plastic geomembrane allows it to be used across diverse industries. Here are the primary sectors where these liners are indispensable.
Water conservation is vital, especially in arid regions. Geomembrane canal lining significantly reduces water loss due to seepage in irrigation channels. Similarly, a geomembrane reservoir liner ensures that stored water remains available for agriculture or municipal use without being absorbed into the ground.
The HDPE pond liner is a game-changer for the aquaculture industry. Farmers use geomembrane pond lining to create hygienic, controlled environments for fish and shrimp. The smooth surface facilitates easy cleaning and harvesting, reducing the risk of disease compared to earthen ponds.
One of the most critical uses is as a geomembrane landfill liner. It serves as a bottom liner to prevent leachate (toxic liquid waste) from contaminating groundwater. It is also used as a capping material to seal landfills once they are full.
In the mining sector, HDPE geomembrane sheets are used for heap leach pads, tailings dams, and solution ponds. Their chemical resistance handles the aggressive solutions used to extract metals from ore.
As a geomembrane waterproofing solution, it protects building foundations, basements, and tunnels from water ingress. It serves as an effective damp-proof course in large commercial structures.
Even the highest quality HDPE geomembrane liner will fail if not installed correctly. Installation is a specialized process requiring skilled technicians and specific equipment like a geomembrane welding machine.
The subgrade must be smooth, compacted, and free of sharp rocks, roots, or debris that could puncture the liner. In some cases, a protective geotextile layer is placed underneath the geomembrane for added cushion.
HDPE geomembrane rolls are heavy and require machinery to move. They are unrolled carefully over the prepared site. Crews must ensure the sheets overlap correctly (usually by 100 mm to 150 mm) to prepare for welding.
This is the most critical phase. Two primary methods are used:

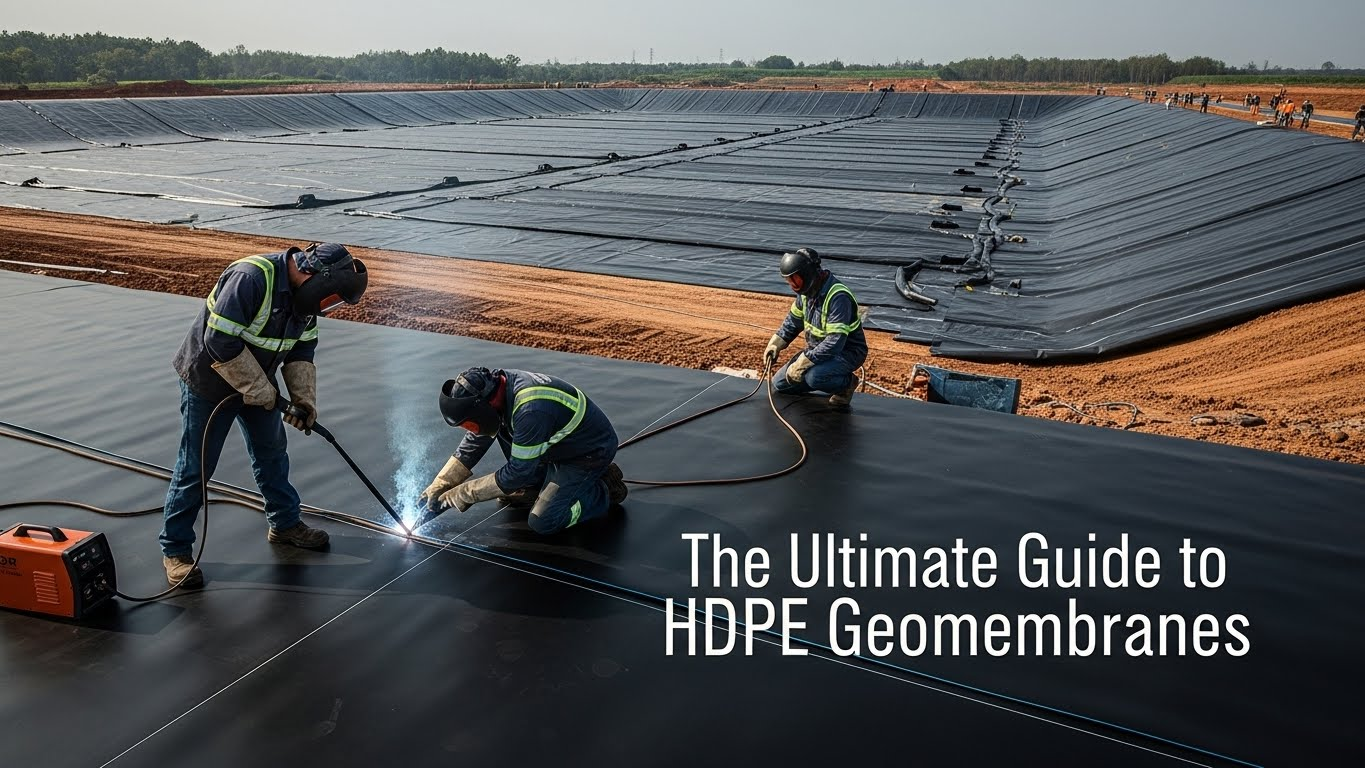

Hot Wedge Welding: A hot wedge geomembrane welding machine runs between the overlapped sheets, melting the plastic and pressing the layers together to form a double-track seam. This is the primary method for long, straight seams.
Extrusion Welding: An extrusion welder HDPE gun is used for patches, corners, and detail work where the wedge welder cannot reach. It extrudes molten HDPE rod over the seam.
Visual inspection isn't enough. HDPE geomembrane testing involves:
Air Pressure Test: Since wedge welds create a double track with an air channel in the middle, installers pump air into this channel to check for leaks.
Vacuum Box Test: Used for extrusion welds to ensure no bubbles or leaks exist.
The demand for HDPE geomembrane in Pakistan has surged due to increased focus on water conservation, modern agriculture, and industrial compliance.
Whether you need HDPE geomembrane in Karachi, HDPE geomembrane in Lahore, or HDPE geomembrane in Islamabad, the supply chain has improved significantly.
Karachi: Being a port city, it is a hub for importers. You can find many HDPE geosynthetics dealer Karachi options offering competitive rates.
Lahore & Punjab: As the agricultural heartland, there is a high demand for HDPE pond liner supplier services here for fish farms and irrigation canals.
The HDPE geomembrane price in Pakistan fluctuates based on raw material costs (oil prices), currency exchange rates, and the thickness of the sheet.
Wholesale Options: Many geomembrane suppliers in Pakistan offer better rates for bulk orders, often referred to as wholesale geomembrane in Pakistan.
Local vs. Imported: While there are local geomembrane liner manufacturers in Pakistan , a significant portion of high-spec material is imported. Always check the geomembrane HS code (3920109090) if you plan to import directly.
When looking to buy HDPE geomembrane, don't just search for "cheap geomembrane sheet Karachi." Prioritize quality. Ask potential suppliers:
Do you provide a geomembrane datasheet verifying specs?
Can you offer geomembrane installation services in Pakistan?
Do you have stock of HDPE geomembrane rolls, or is it made to order?
While HDPE is durable, it is not indestructible. Accidental punctures from machinery or vandalism can occur.
Regular Inspections: For exposed liners (like in ponds), visual inspections should be conducted regularly, especially when water levels are low.
Patching: Small holes can be repaired easily using an extrusion welder and a patch of the same material. It is vital to clean and dry the area thoroughly before welding.
Cleaning: For aquaculture, cleaning the geomembrane pond lining between cycles prevents algae buildup and maintains hygiene. Avoid using sharp tools that could scratch the surface.
The industry is moving toward smarter, more efficient materials. We are seeing the rise of drainage composite geomembrane systems that combine the liner with a drainage layer, simplifying installation. Additionally, conductive geomembranes are becoming available, which allow for easier spark-testing to detect leaks after installation.
Furthermore, sustainability is driving the development of liners with higher recycled content, although virgin resin remains the standard for critical containment lining sheet applications to ensure consistency.
HDPE geomembrane is a cornerstone of modern geotechnical and environmental engineering. Its ability to provide a robust, chemical-resistant, and impermeable barrier membrane makes it irreplaceable for everything from shrimp farming to hazardous waste management.
Whether you are a civil engineer specifying a geomembrane reservoir liner, a farmer looking for an HDPE pond liner supplier, or a contractor needing geomembrane welding contractor Pakistan services, understanding the material's properties and proper installation techniques is key to a successful project.
Investing in high-quality HDPE geomembrane sheets and professional installation might seem like a significant upfront cost, but it pays dividends in longevity, reduced maintenance, and environmental safety.
Ready to secure your project with the best lining solution?
If you are looking for top-tier HDPE geomembrane manufacturers or need a quote for the best price for HDPE geomembrane in Pakistan, don't hesitate to reach out to industry experts. Ensure your investment lasts for decades with the right material and the right team.
Contact us today to discuss your specifications and get a customized solution for your containment needs.
